SERIES 6000 - SINGLE CYLINDER HOIST
SUMMARY

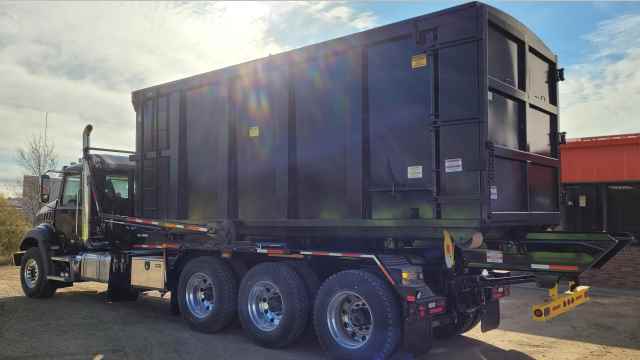

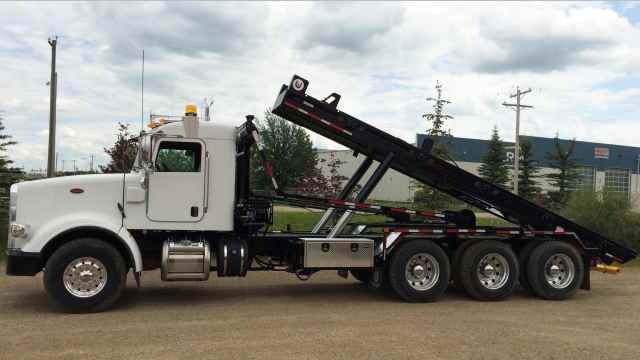

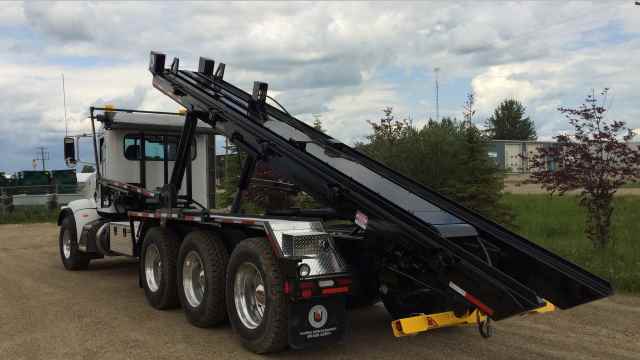

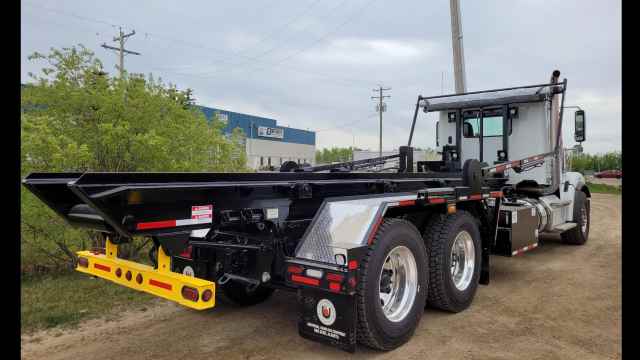

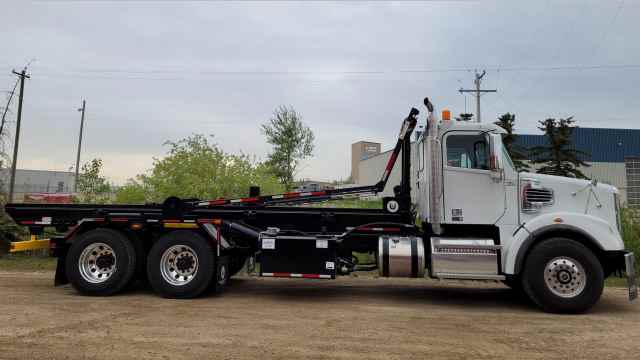

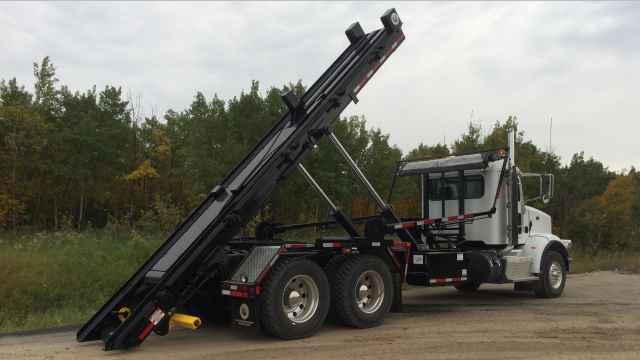

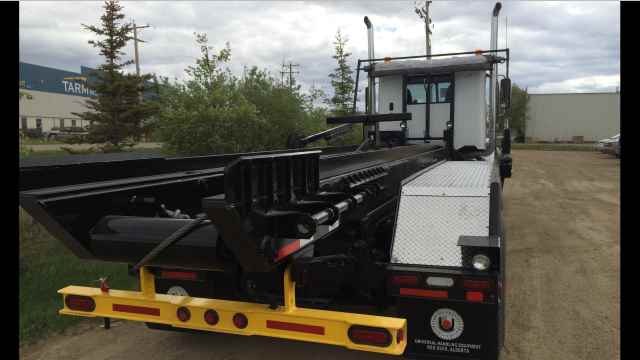

Universal Handling Equipment Roll-Off Hoists provide the perfect combination of strength and durability in the marketplace today. The Series 6000 Hoist is a single reeving cylinder cable hoist with a variety of different options.
WE HAVE SOME SERIES 6000 - SINGLE CYLINDER HOISTS IN STOCK!
SPECIFICATION & DATA
Documents
General Specifications - 23.5 Foot Bed
| Capacity | 50,000 or 60,000 lbs |
| Weight | 8,200 Lbs |
| Max Dumping Angle | 45 Degrees |
| Container Length | Up to 23' container |
| Safety | Bed Up Props |
| Safety | Bed Up Indicator |
General Specifications - 26 Foot Bed
| Capacity | 50,000 or 60,000 lbs |
| Weight | 10,200 Lbs |
| Max Dumping Angle | 45 Degrees |
| Container Length | Up to 25' Container |
| Safety | Bed Up Props |
| Safety | Bed Up Indicator |
Construction - 23.5 Foot Bed
| Cable | 7/8" cable 6 x 37 iwrc |
| Cable Travel | 26' |
| Free Cable | 4' |
| Cable Sheaves | Cable sheave bronze bushing |
| Top Rail Wear Strip | 3/8" flat bar |
| Outside Frame Width | 35" |
| Hoist Frame | 14" x 4" HSS x 5/16" |
| Fenders and Toolbox | Steel |
Construction - 26 Foot Bed
| Cable | 7/8" cable 6 x 37 iwrc |
| Cable Travel | 29' |
| Free Cable | 4' |
| Cable Sheaves | Cable sheave bronze bushing |
| Top Rail Wear Strip | 3/8" flat bar |
| Outside Frame Width | 35" |
| Hoist Frame | 14" x 4" tubing x 5/16" |
| Fenders and Toolbox | Steel |
Hydraulics - 23.5 Foot Bed
| Operating Pressure | 2,000 psi |
| Oil Tank Capacity | 50 US gallons |
| Oil Pump Specifications | 40 gpm @ 1,000 rpm (Front mount) |
| Control valve | Sectional High Flow Air Actuated |
| Tilt Cylinders | 50,000lb: 6" bore x 4" rod - 60,000lb: 7" bore x 4" rod |
| Single Stage Hoist Cylinder | 8" bore x 4" rod |
| Hoses | SAE 100R12 with abrasion resistant cover |
Hydraulics - 26 Foot Bed
| Operating Pressure | 2,000 psi |
| Oil Tank Capacity | 75 US gallons |
| Oil Pump Specifications | 40 gpm @ 1,000 rpm (Front mount) |
| Control valve | Sectional High Flow Air Actuated |
| Tilt Cylinders | 50,000lb: 6" bore x 4" rod 60,000lb: 7" bore x 4" rod |
| Single Stage Hoist Cylinder | 8" bore x 5" rod |
| Hoses | SAE 100R12 with abrasion resistant cover |
Electrical
| Lighting | TruckLite lifetime LED lighting |
| Wiring | Premium coded wiring with junction boxes eliminated |
| Wiring | Proximity sensors - bed up sensor |
Paint
| Urethane Black |
Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
OPTIONS
Body Options
- Pintle Hook
- Rails - Inside and/or Outside
- Rollers - Inside and/or Outside
- Tail Roller
Electrical
- LED Work Lights
- Back-up camera
Fenders and Toolbox
- Steel checkered plate
- Aluminium checkered plate
- Plastic
Hydraulic
- Hydraulic Rear Stabilizer
- Trailer Hydraulic Connections
- Wet Line Kits
- Hydraulic Tail Extension (Stinger Tail)
- Pump - Transmission PTO Mounted
Mechanical
- Container Locks - Rear Flip Up
Paint
- Custom colours available
Safety
- Fire Extinguishers
Tarp System
- Various Tarp Systems Available
