SUMMARY

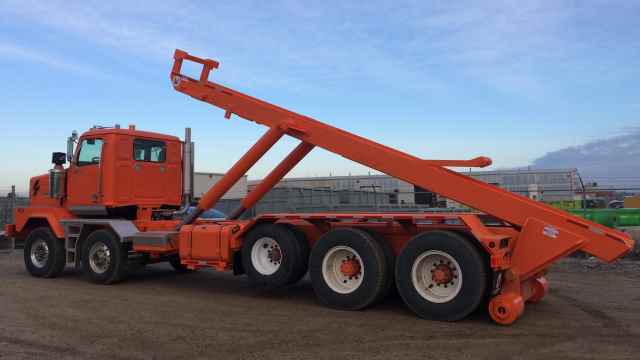

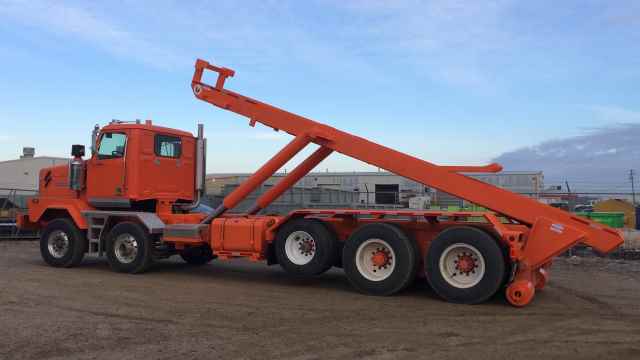

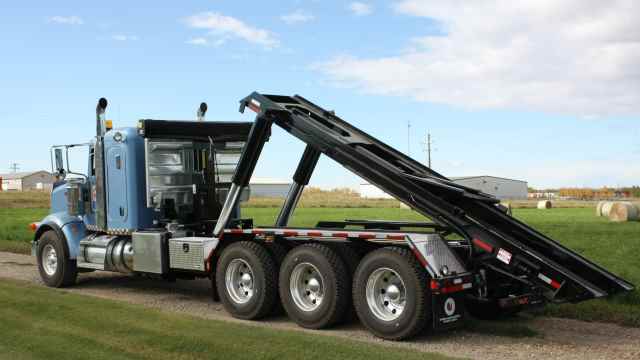

Universal Handling Equipment Roll-Off Hoists provide the perfect combination of strength and durability in the marketplace today. The Series 3000 Hoist is a heavy duty bale style hoist that ratchets the container onto the rails.
SPECIFICATION & DATA
Documents
General Specifications
| Bed Length | 23.5 Foot Bed |
| Container length | Up to 22 ft skid |
| Capacity | 50,000 Lbs |
| Weight | 8,600 lbs |
| Approximate dumping angle | 45 - 50 degrees |
| Safety | Bed up props |
| Safety | Bed up indicator |
Construction
| Bale size | 2 3/4" |
| Hoist frame | 9" Structural Ship Channel |
| Top rail wear strip | 3/8" flat bar |

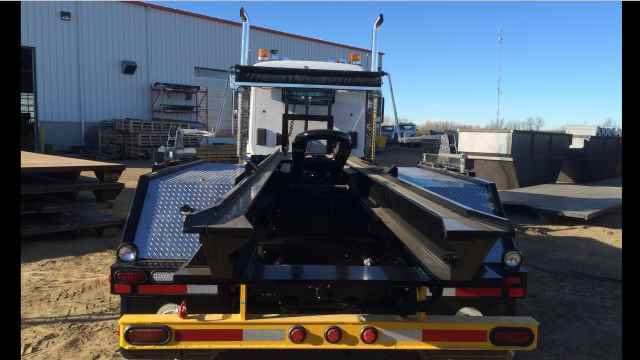

| Rail width | To fit Bins that are 33" Outside/Outside |
| Fenders | Steel |
Hydraulics
| Operating pressure | 2,000 psi |
| Oil tank capacity | 50 US gallon |
| Oil pump specifications | 40 gpm @ 1,000 rpm (front Mount) |
| Control valve | Sectional High Flow Air Actuated |
| Single stage tilt cylinders | 6" or 7" bore x 4" rod |
| Single stage hoist cylinder | 6" bore x 4" rod |
| Hoses | SAE 100R12 with abrasion resistant cover |
Electrical
| Lighting | TruckLite lifetime LED lighting |
| Wiring | Premium coded wiring with junction boxes eliminated |
| Wiring | Proximity sensors - bed up sensor |
Paint
| Urethane Black |
Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
OPTIONS
Body Options
- Pintle Hook
- Rails Inside/Outside
- Rollers - Inside and/or Outside

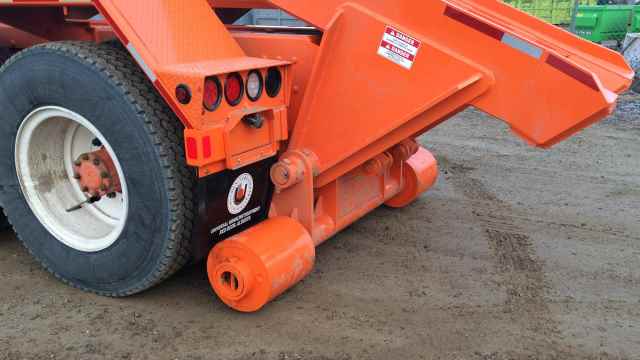

- Tail Roller
Electrical
- LED Work Lights
- Camera System
Fenders and Toolbox
- Steel checkered plate
- Aluminum checkered plate
- Plastic
Hydraulic
- Hydraulic Rear Stabilizer
- Trailer Hydraulic Connections
- Wet Line Kits
- Pump - Transmission PTO Mounted
Mechanical
- Container Locks - Rear Flip Up
Paint
- Custom colours available
Safety
- Fire Extinguishers
Tarp System
- Various Tarp Systems Available
