CABLE ROLL OFF HOISTS

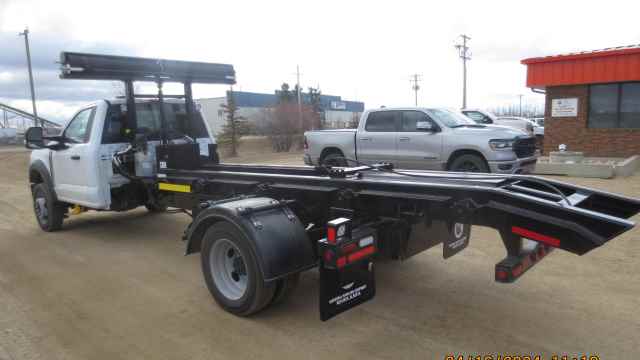

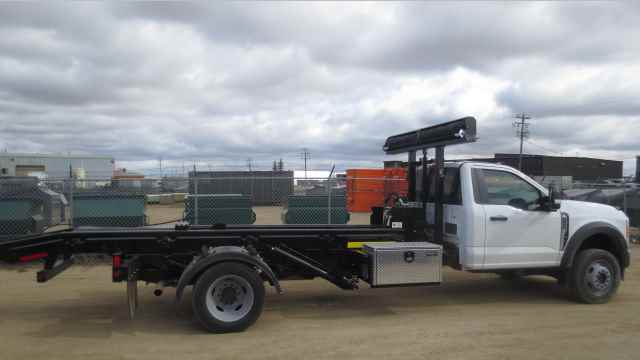

SERIES 1000 - MINI HOIST
SUMMARY
Universal Handling Equipment Roll-Off Hoists provide the perfect combination of strength and durability in the marketplace today. The Series 1000 is a small hoist design made for light/medium duty single axle trucks, ideal for small residential applications.
SPECIFICATION & DATA
Documents
1000 SERIES BROCHURE.PDF
General Specifications
Nominal length 16'
Bed length Suitable for 12-16 foot length skid containers
Capacity 10,000 lbs
Scissor Lift Tilt Cylinders 5 " bore
Telescopic Hoist Cylinders 3 stage 5 1/2 " to 3 1/2 "
Cable length 5/8 " x 175 " long
Operating Pressure 2000 psi
Sub Frame Mounted Hydraulic Tank 15.5 gal. capacity
Bed Construction 6 " x 4 " tubing
Fenders and Toolbox Steel
Tipping Angle 45 degrees
Hydraulic System
Hydraulic System designed for ISO 16/13 standard
Pump and PTO
Pump and PTO to suit chassis
Painting
Black Urethane Paint

Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.

OPTIONS
Bin Sizes
  • Drop In Stops to accomodate various length bins
Body Options
  • Additional LED Work Lights
  • Back-Up cameras
  • Pintle plate and hook
  • Variety of tarp systems available
Fenders and Toolbox
  • Steel checkered plate
  • Aluminum checkered plate
  • Plastic
Painting
  • Custom colours available upon request
