SUMMARY

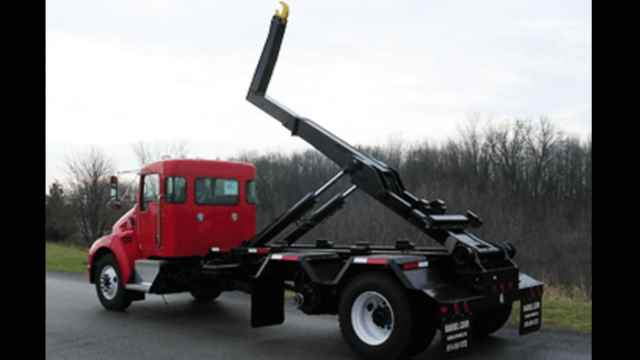

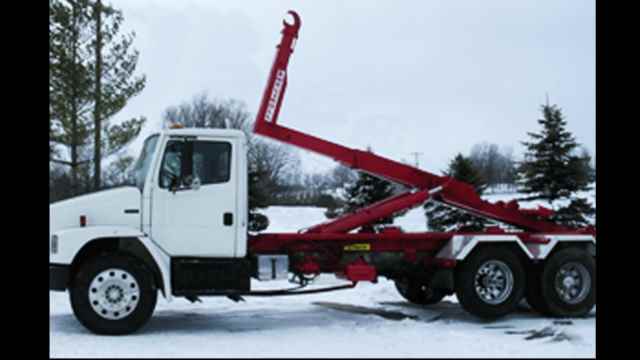

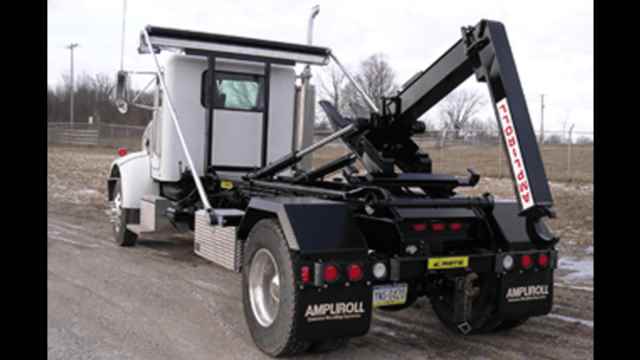

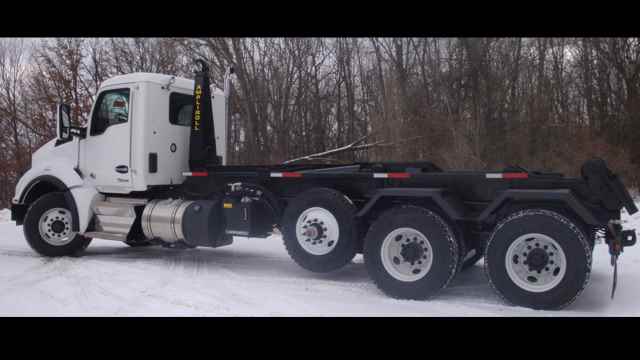

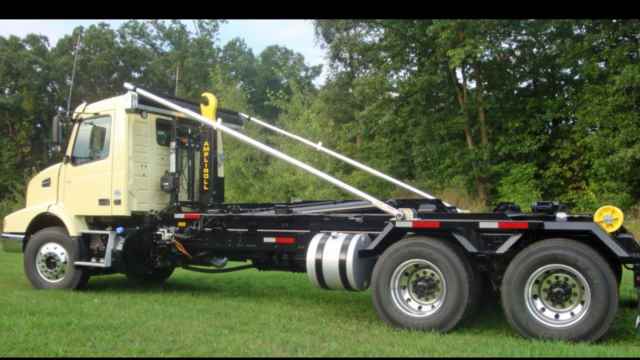

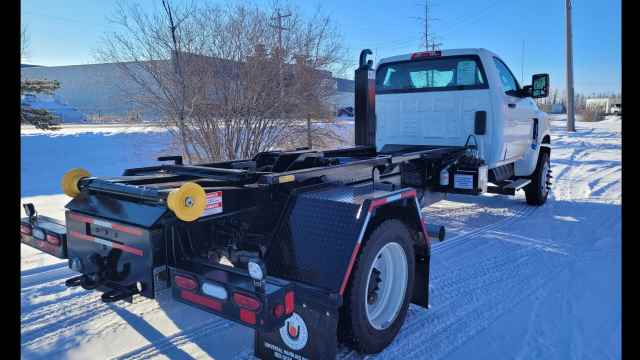

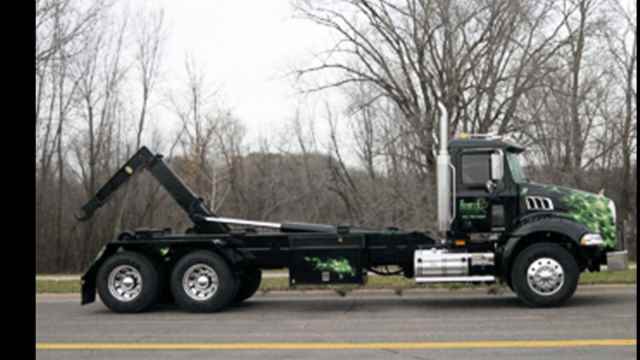

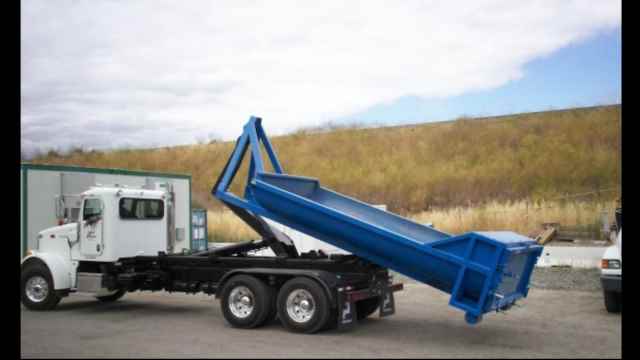

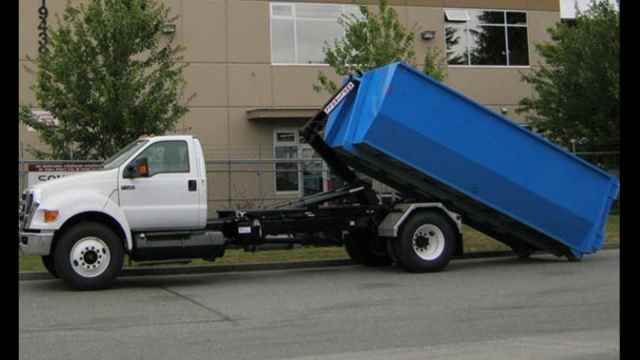

35,000 lbs hoist designed to handle containers between 12' and 22' of length. Universal Handling Equipment is a certified Ampliroll Hooklift dealer. Proud to offer customers sturdy, long lasting hooklift equipment to fit a wide range of projects.
SPECIFICATION & DATA
Documents
Body Construction
| ASTM A 572 Alloy Steel | Jib |
| ASTM A 572 Alloy Steel | Central Arm |
| ASTM A 572 Alloy Steel | Tilting Frame |
Hook Height
| Standard | 61 3/4" |
| Optional | 54" |
Hydraulic
| Pump | Axial piston, 5,700 psi, 14 GPM @ 1,200 RPM, Standard - DIN Shaft or optional SAE 7/8th Shaft |
| Controls | Low pressure hydraulic, cable or air in cab |
| Reservoir | 12 gallons |
| Filter | 10 micron, return line with replaceable cartridge |
| Max Operating Pressure | 4,800 psi |
| Hoses, Tubes and Fittings | all JIC/SAE specifications |
Painting
| Standard | Black |
| Custom | Custom Colours available upon request |
Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
OPTIONS
Body Options
- Additional LED Work Lights
- Back-Up cameras
- Pintle plate and hook
- Variety of tarp systems available
Fenders
- Plastic
- Aluminum
- Steel
Hook Height
- Optional adjustable hook height
Painting
- Custom colours available upon request
Toolboxes
- Plastic
- Aluminum
- Steel
